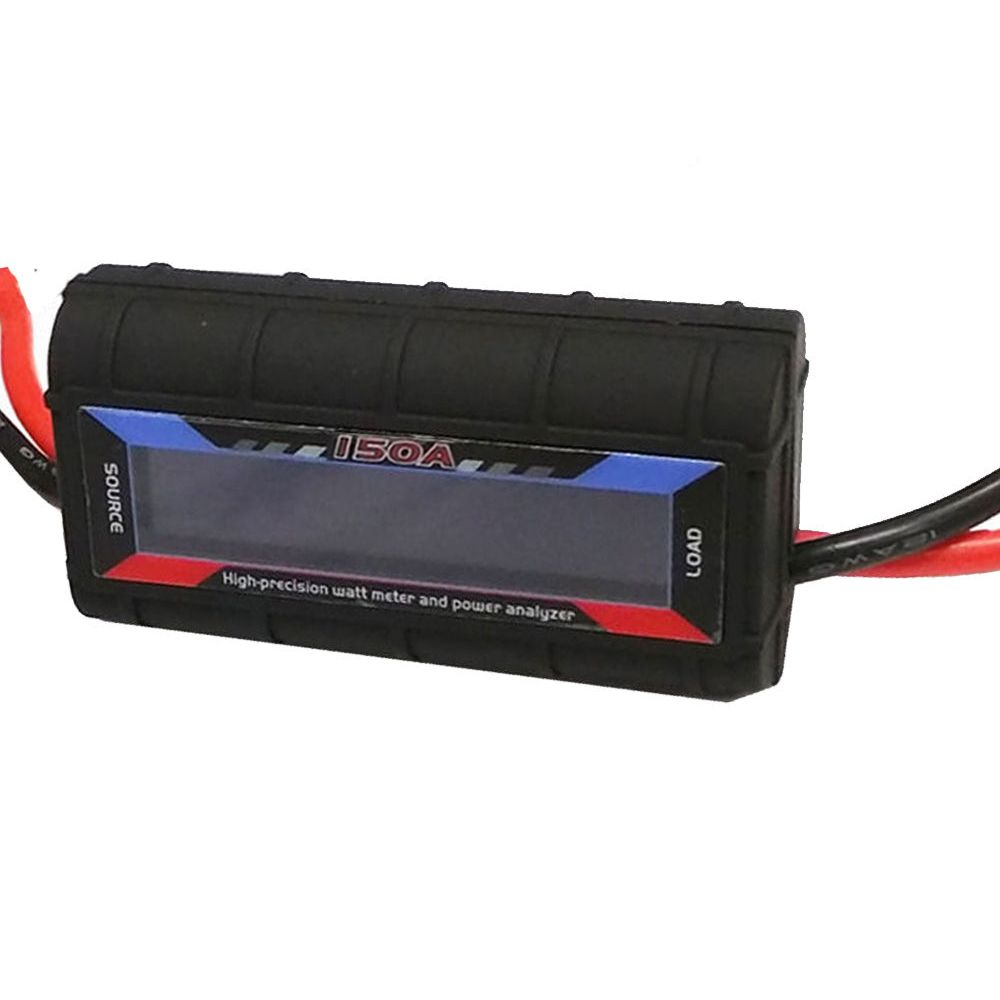

150A Watt Meter Power Analyzer Digital LCD Solar Volt Amp Anderson Style Plug AU
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

150A Watt Meter Power Analyzer Digital LCD Solar Volt Amp Anderson Style Plug AU

Available:Out of Stock
Wishlist Compare
  • Product SKU: V94-ODR-BAT-CY150A+ODR-ADSPLUG*2
$43.00
Successful pre-order.Thanks for contacting us!

Features

Prevents peak currents damaging battery, ESC, motors, wiring and connectors
Verifies sufficient operating voltage under load
Individual cell balancing.Set cutoff voltages, check battery capacity health
Confirms proper battery charger operation (connect between your battery and charger)
Detect receivers and actual operating current so as to make sure whether an UBEC is needed
Blue backlit LCD display
2x Anderson Style Plug included

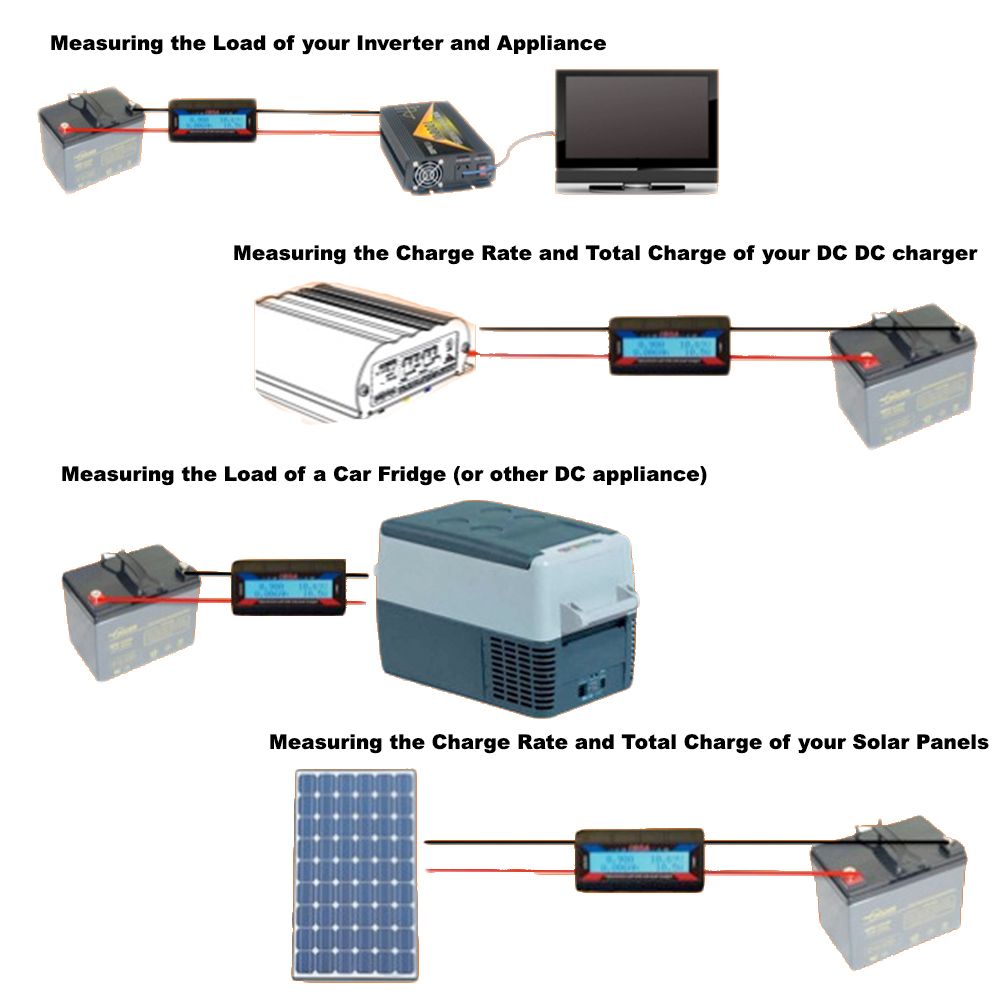

These meters are easily plugged in, in-line, to measure:
Amp Hours(Ah) - Total charge Ah delivered from source to load
Amp Peak (Ap) - Highest amp value delivered (Typically startup cycle for inverters, compressors, fridges etc.)
Amp(A) - Amps being delivered at that point in time
Voltage - Source voltage, and minimum source voltage. Good for measuring voltage at lowest point of charge -- E.G. Minimum overnight voltage of car fridge battery
Power(Watts) - Peak watts, watts being delivered at that point in time

Specifications

Operates from 4.8-60V
0V with optional auxiliary battery
Measures: 0 to 130 Amps (resolution 0.01A)
Measures: 0 to 60V (resolution 0.01A)
Measures: 0 to 6554W (resolution 0.1W)
Measures: 0 to 65 Ah (resolution 0.001 Ah)
Measures: 0 to 6554 Watt Hours (resolution 0.1 Wh)
Dimensions: 85 x 42 x 25mm
Weight: 85g
Color: Black

Package Content:

1 x Watt Meter and Power Analyzer 150 Amps with 2 Anderson Style Plug
1 x User's Manual

Features

Prevents peak currents damaging battery, ESC, motors, wiring and connectors
Verifies sufficient operating voltage under load
Individual cell balancing.Set cutoff voltages, check battery capacity health
Confirms proper battery charger operation (connect between your battery and charger)
Detect receivers and actual operating current so as to make sure whether an UBEC is needed
Blue backlit LCD display
2x Anderson Style Plug included
These meters are easily plugged in, in-line, to measure:
Amp Hours(Ah) - Total charge Ah delivered from source to load
Amp Peak (Ap) - Highest amp value delivered (Typically startup cycle for inverters, compressors, fridges etc.)
Amp(A) - Amps being delivered at that point in time
Voltage - Source voltage, and minimum source voltage. Good for measuring voltage at lowest point of charge -- E.G. Minimum overnight voltage of car fridge battery
Power(Watts) - Peak watts, watts being delivered at that point in time

Specifications

Operates from 4.8-60V
0V with optional auxiliary battery
Measures: 0 to 130 Amps (resolution 0.01A)
Measures: 0 to 60V (resolution 0.01A)
Measures: 0 to 6554W (resolution 0.1W)
Measures: 0 to 65 Ah (resolution 0.001 Ah)
Measures: 0 to 6554 Watt Hours (resolution 0.1 Wh)
Dimensions: 85 x 42 x 25mm
Weight: 85g
Color: Black

Package Content:

1 x Watt Meter and Power Analyzer 150 Amps with 2 Anderson Style Plug
1 x User's Manual
