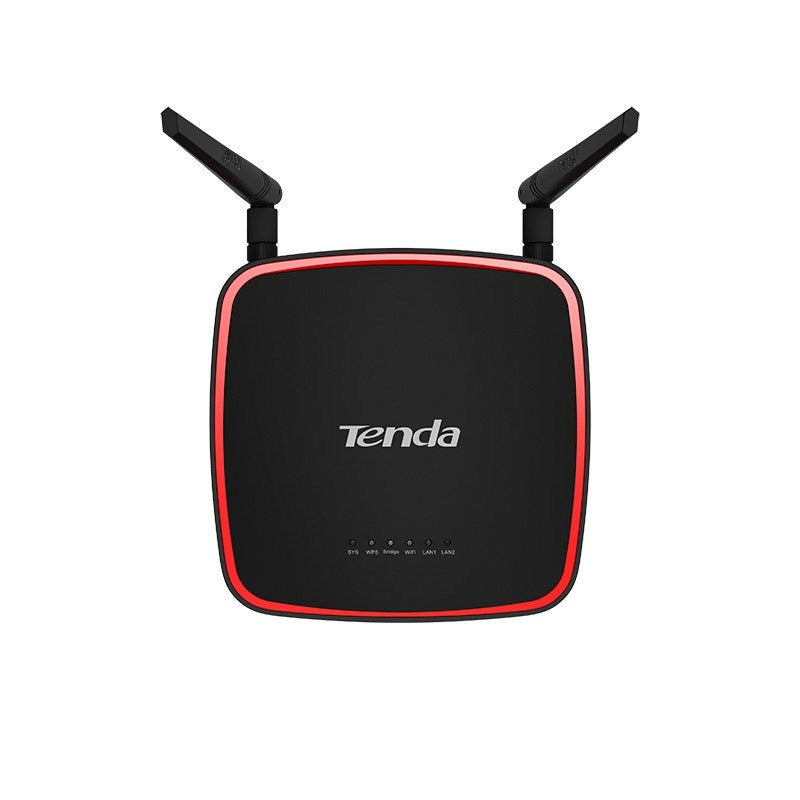

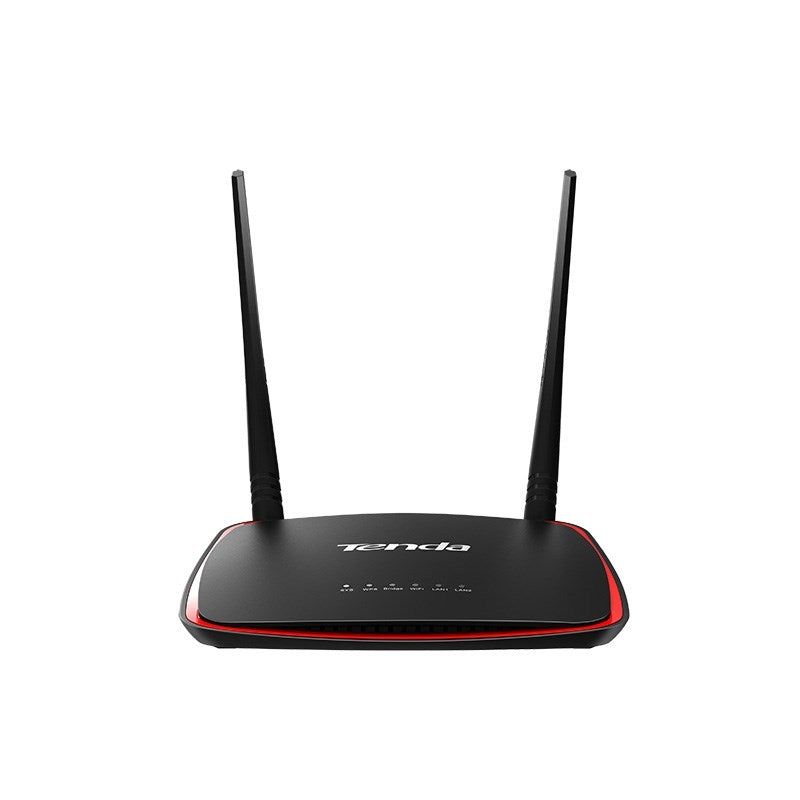

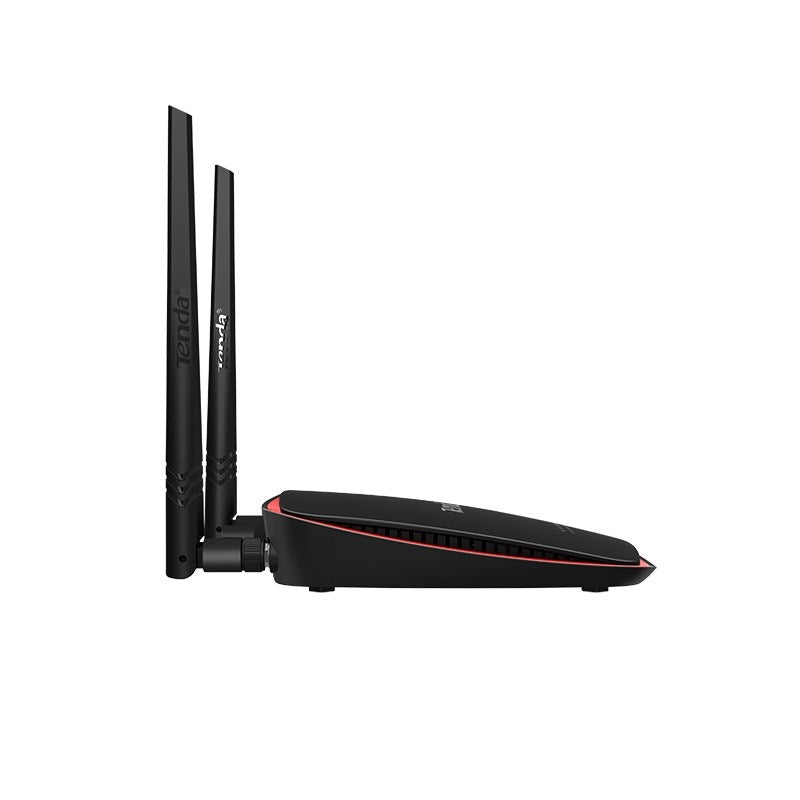

Tenda AP4 v2.0 N300 Wireless Desktop Access Point

AP4 is designed to boost the range of your existing WiFi and create a stronger signals for game consoles, printers, smart phones, and tablets. Power over ethernet supported and wall-mount design make it flexible to deploy in any locations. It has multi operation modes like Universal Repeater, Client (Station), WISP, which can adapt various application scenarios. It is an ideal Wi-Fi booster for large houses, villas, eatery, large stores etc.

Power Method:
DC 9V=0.6A
Passive PoE
Passive PoE power supply:Up to 40 meters Passive PoE is supported(cat5e or up)
Hardware Deployment:Desktop/Wall Mount
Video user capacity:5
wireless users capacity:20+
Diagostic:
Wireless site survey
Ping
Traceroute
Network Service:
Schedule Reboot
Http/Https
Managed by AC:AC500
Reception Sensitivity:
b mode: 1M -89dBm@8%
11M -87dBm@8% PER
g mode: 54M -74dBm@8% PER
n mode: 72.2M -72dBm@8% PER
150M -70dBm@8% PER
LED indicator:SYS,WPS,Bridge,WiFi,LAN1,LAN2
Frequency:2.4GHz-2.483GHz
LAN Settings:
Static IP
Dynamic IP
DHCP Server:
DHCP Server
Clients list
Wireless Rate:
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Operating Mode:
Access Point
Universal Repeater
Station(Client)
WISP (Client+Router)
Client+AP
Wireless Function:
8 SSID
Enable/Disable Wireless Radio
Broadcast SSID
SSID Hidden automatically when exceed client limit
Client limit for SSID
Transmission output power
AP isolation
RSSI threshold for wireless clients
WMM capable
APSD capable
Access control based mac address
Wireless Client list
VLAN for multi SSID
Wrieless Security:64/128 WEP WPA-PSK WPA2-PSK WPA & WPA2-PSK WPA WPA2
VPN Pass-through:PPTP L2TP
Management Tool:
Reboot
Restore to factory default
System Log
Firmware update
Time & Date Setting
Backup/Restore Configuration
Username Managerment

Temperature:
Operating:Temperature: -10°C~45°C
Storage Temperature : -30°C~70°C
Humidity:
Storage Humidity: 5%~90% non-condensing
Operating Humidity: 10%~90% non-condensing
Default Settings:IP Address: 192.168.0.254 Login Username: admin Login Password: admin
Certification:FCC/CE/Rohs/VoC
Button:1 × Reset 1 × Range Extender
Antenna:2 × 5dBi Detachable Omni Directional (RP-SMA)
Interface:2 × 10/100M Ethernet Port (RJ45)
Standard & Protocol:IEEE 802.11n/g/b
Dimension:148 × 146.2 × 31.5mm

Package Content:
300Mbps Wireless N Access Point AP4
1 × PoE Injector
1 × Quick Installation Guide
1 × Ethernet cable
1 × Power Adapter
2 × Screws
2 × Plastic Bolt
